Endhooked Loose Concrete Fiber Steel Wire Fiber For Concrete

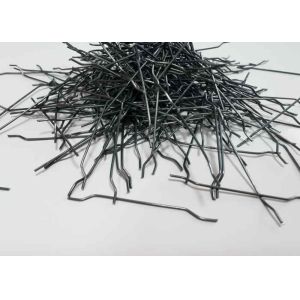

Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod
with 6.5mm, this cold drawn steel wire has excellent mechanical
properties including high tensile strength. Hence, the average
tensile strength of the reinforced fibre surpasses
1000MPa,1200Mpa,1300Mpa,1500Mpa and even can reach 1800Mpa. Due to
this high strength,the uniform distribution of fibers, stresses can
be fully dispersed and cracking be effectively controlled.
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Mixing proportion of Hooked Ends Steel Fiber
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
